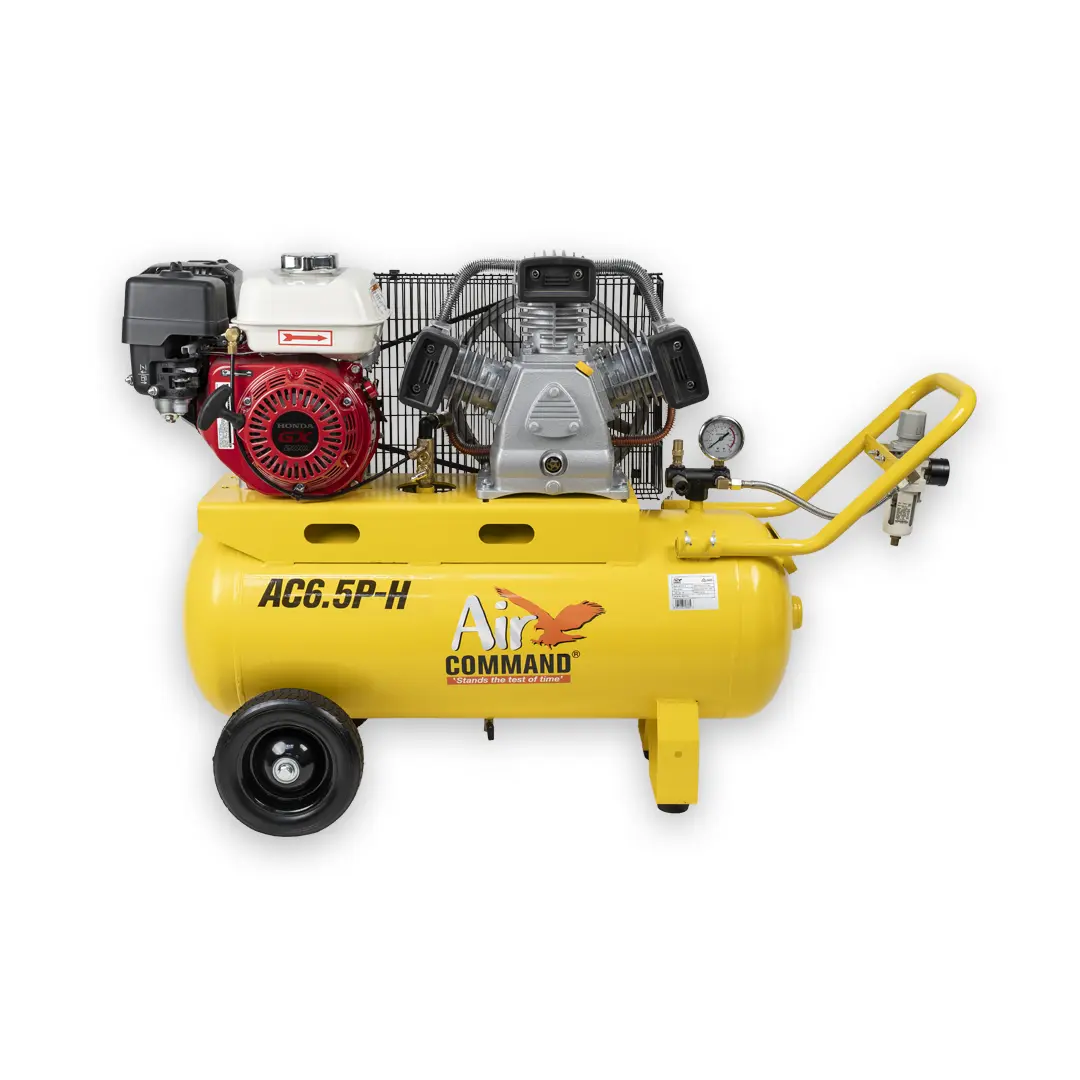

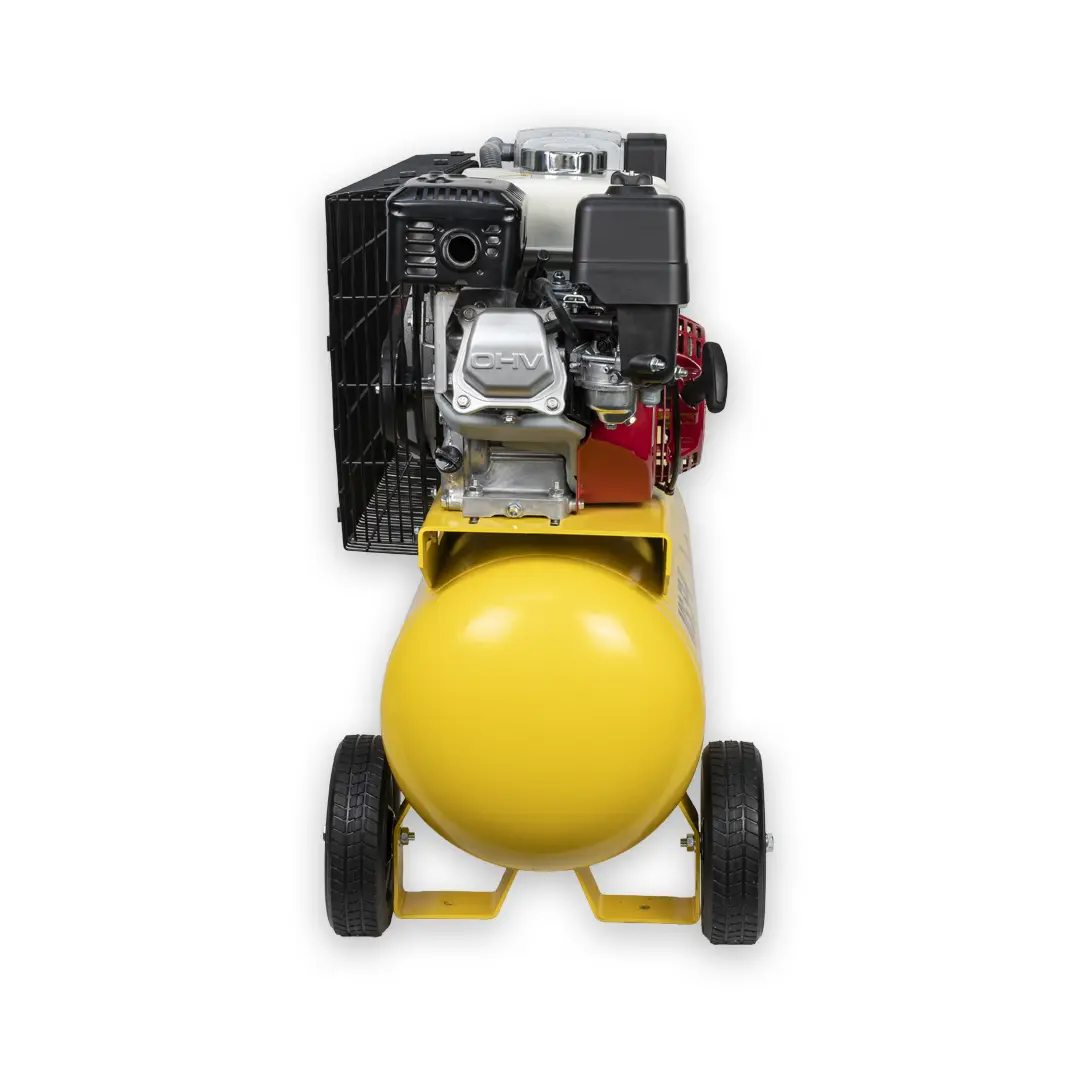

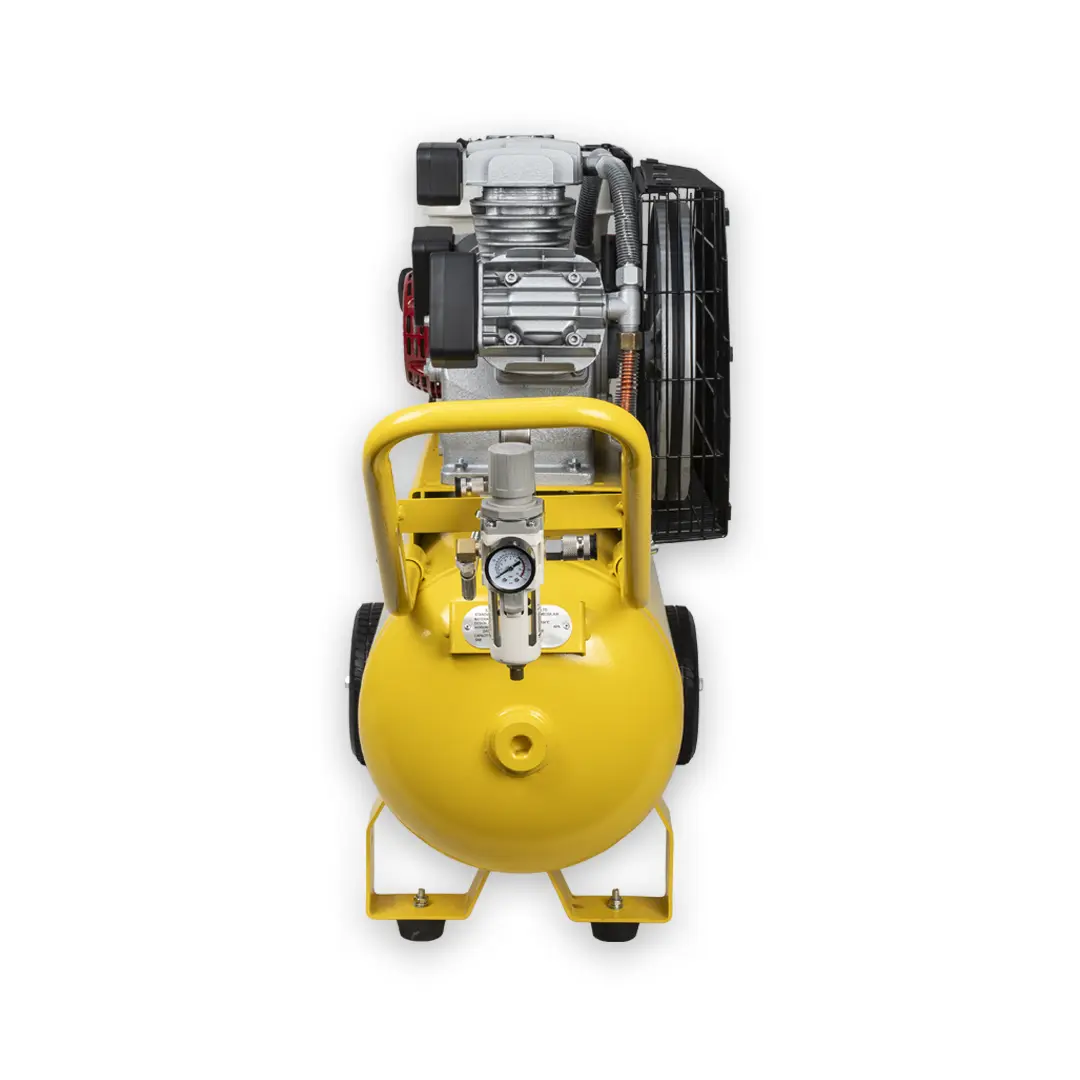

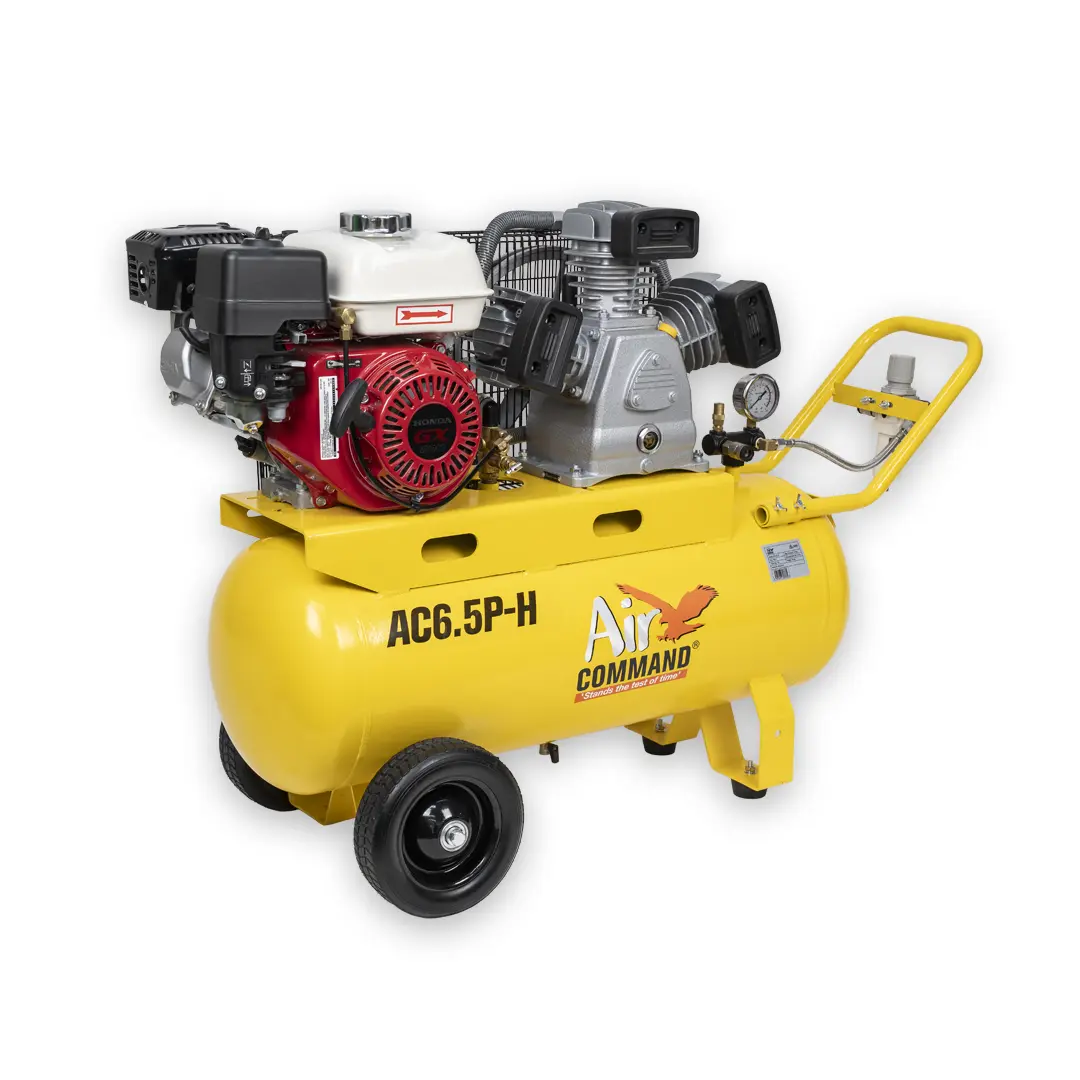

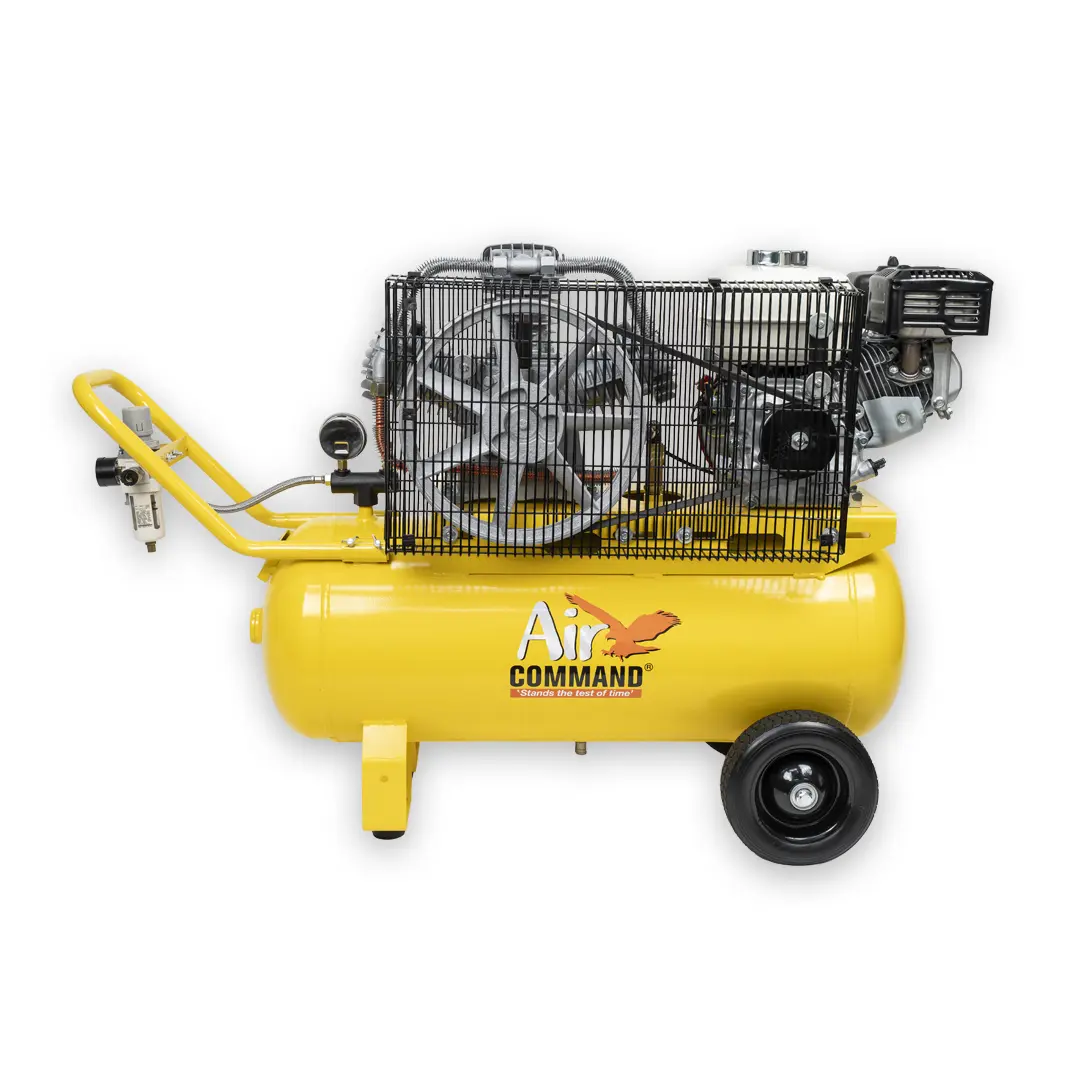

Air Command AC6.5P-H Mobile Petrol Compressor 70L Tank Honda GX200 Engine

Manufacturer: Air Command
SKU: 42472
Heavy-duty petrol air compressor powered by a Honda GX200 engine, delivering reliable airflow for tools on-site. Ideal for workshops and mobile use, with efficient idle control for reduced fuel use and longer run time.
$2,995.00 Excl GST

Product Overview

Air Command AC6.5P-H Mobile Petrol Compressor 70L Tank Honda GX200 Engine

The Air Command AC6.5P-H petrol air compressor is a robust, mobile air solution designed for tradespeople, workshops, and demanding job sites. Powered by a reliable Honda GX200 4-stroke engine, it delivers consistent airflow for running multiple pneumatic tools. Built with a heavy-duty cast iron pump and mounted on a portable 70L tank, it combines durability with flexibility for on-site and workshop use.

Key Feeatures

Honda GX200 Petrol Engine
Fitted with a trusted 4-stroke Honda GX200 engine, this compressor offers dependable starting and excellent fuel efficiency. It’s ideal for remote or on-site work where consistent, long-running performance is essential.

Heavy Duty Cast Iron Pump
The V-twin 3-cylinder cast iron pump is built for durability and long service life. It delivers consistent airflow while handling demanding workloads, making it well suited to trade and industrial environments.

Efficient Idle Control System
Equipped with a Conrader pneumatic idle control, the compressor automatically reduces engine speed when not under load. This lowers fuel consumption, reduces noise, and minimises wear on components.

Portable 70L Tank Design
Mounted on a 70L receiver with solid wheels, the unit is easy to move around job sites. It provides a practical balance between air storage capacity and portability for flexible use.

High Air Output Performance
With up to 552 l/min displacement and a maximum pressure of 145 psi (10 bar), this compressor delivers strong airflow for operating multiple air tools efficiently.

AS1210 Certified Tank
The air receiver is AS1210 certified, ensuring compliance with safety standards. This provides peace of mind for site use and long-term reliability in industrial applications.

Air Command AC6.5P-H Mobile Petrol Compressor 70L Tank Honda GX200 Engine

Specifications
Attribute nameAttribute value
Dimension1100 x 450 x 820mm
Weight (kg)95kg
Pump TypeHeavy Duty Cast Iron 'V' 3 Cylinder Single Stage
EngineHonda GX200 4 Stroke Petrol
Receiver Size70L
Pump Displacement552 l/min 19.5 cfm
FAD @ 0 psi502 l/min 17.7 cfm
FAD @ 7 bar307 l/min 10.8 cfm
Max Pressure145psi 10 bar
Pump Speed (RPM)1050 rpm
Fuel Tank Capacity (L)3.1L
Pump Oil Capacity1L
Drive Belt SpecificationA1346
Air Outlet2x 1/4" Aro Type Quick Connect
Sound Pressure Level72 dBa
